Intermediate Relay

Feature • Sensitive response,High switching frequency,fast and accurate(Turn ON Max. 50μs,Turn OFF Max. 300μs) • No operation noise, quiet and reliable • Maintenance-free, long lifetime. • Optoelectronic isolation,dielectric: 2500VAC • Compliance to EMC, suitable for application in harsh environment.Application in the interface circuit with PLC

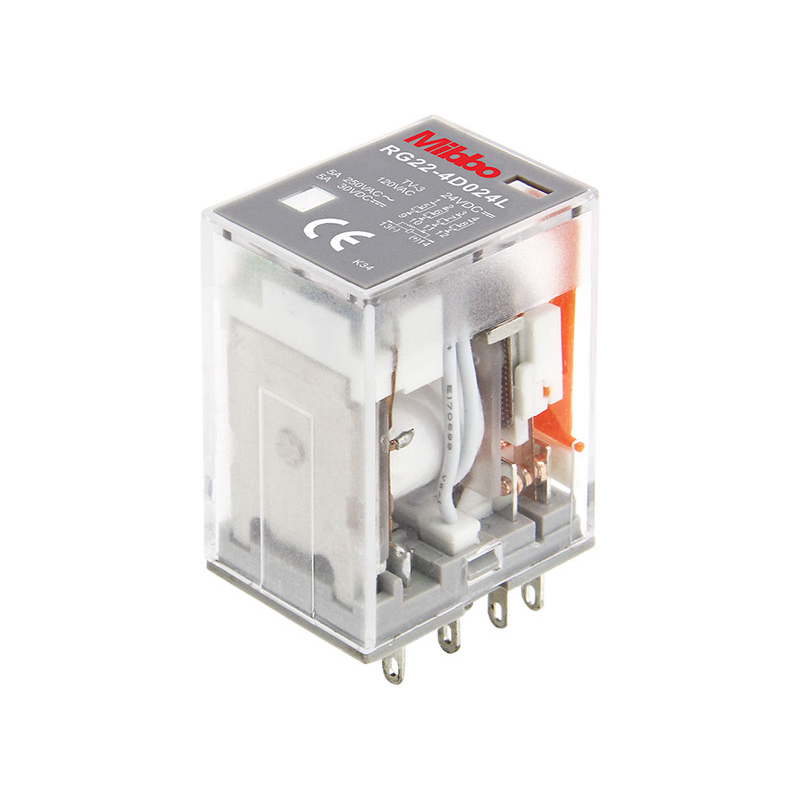

Feature •  Multiple switching capability(1C:15A、2C:10A type) •  Ag plated, gold plated contact available •  Built-in operating indicator  •  15.0kV dielectric strength(between coil and contacts) •  Lead-free,environmental friendly product(RoHS compliant)

Feature • NPN/PNP bi-polar compatibility • Simple pluggable design, easy to install and replace • Quick-plug terminals, quick wiring, save time • The number of relays can be selected according to customer needs • With indicator light working status indication • TS35 DIN fast assembly

Feature •  1 group (12A) 2 groups (8A) convert contact type •  Thin type relay is only 13mm •  Contact-coil resistance voltage 5000V/8mm •  Low coil power consumption •  Suitable for environmental protection RoHS •  Combination with Push-In Plus socket RL-□S can shorten 60% of distribution hours

Feature •  1 Form NO and 1 Form C configurations •  4.0kV dielectric strength (between coil and contacts) •  Operation time:8 ms max. •  Miniature in size,save space •  Screw mounting or Push-in Plug available

Feature •  4 channel,8 channel single contact relay(5A) •  LED indicator for power on •  DC24V, NO •  Mechanical endurance: 2*10  ops •  Outline Dimensions: 68x 32 x 39mm

Feature • NPN/PNP bi-polar compatibility • Simple pluggable design, easy to install and replace • Quick-plug terminals, quick wiring, save time • The number of relays can be selected according to customer needs • With indicator light working status indication • TS35 DIN fast assembly

Feature • NPN/PNP dual pole compatibility • The number of relays can be selected according to customer needs • Has the indicator of the indicator light • TS35 DIN fast assembly

Feature • NPN/PNP dual pole compatibility • Each built -in self -recovery insurance tube, short circuit protection,    overload protection • Coupling isolation to prevent misunderstanding caused by the grid    interference signal • Built -in MOSFET field effect tube, the impact current can reach 10A • With input and output LED status instructions
